Gore®

Gore-Tex Standard Plant Fibre Ring Gasket (RG)

$0.00
$0.00
GORE® Universal Pipe Gasket (Style 800) seals a broad range of flange materials with this low stress-to-seal, exceptionally dimensionally stable and chemically resistant 100% ePTFE gasket.
Size:
Flange:
Thickness:
1000 In Stock

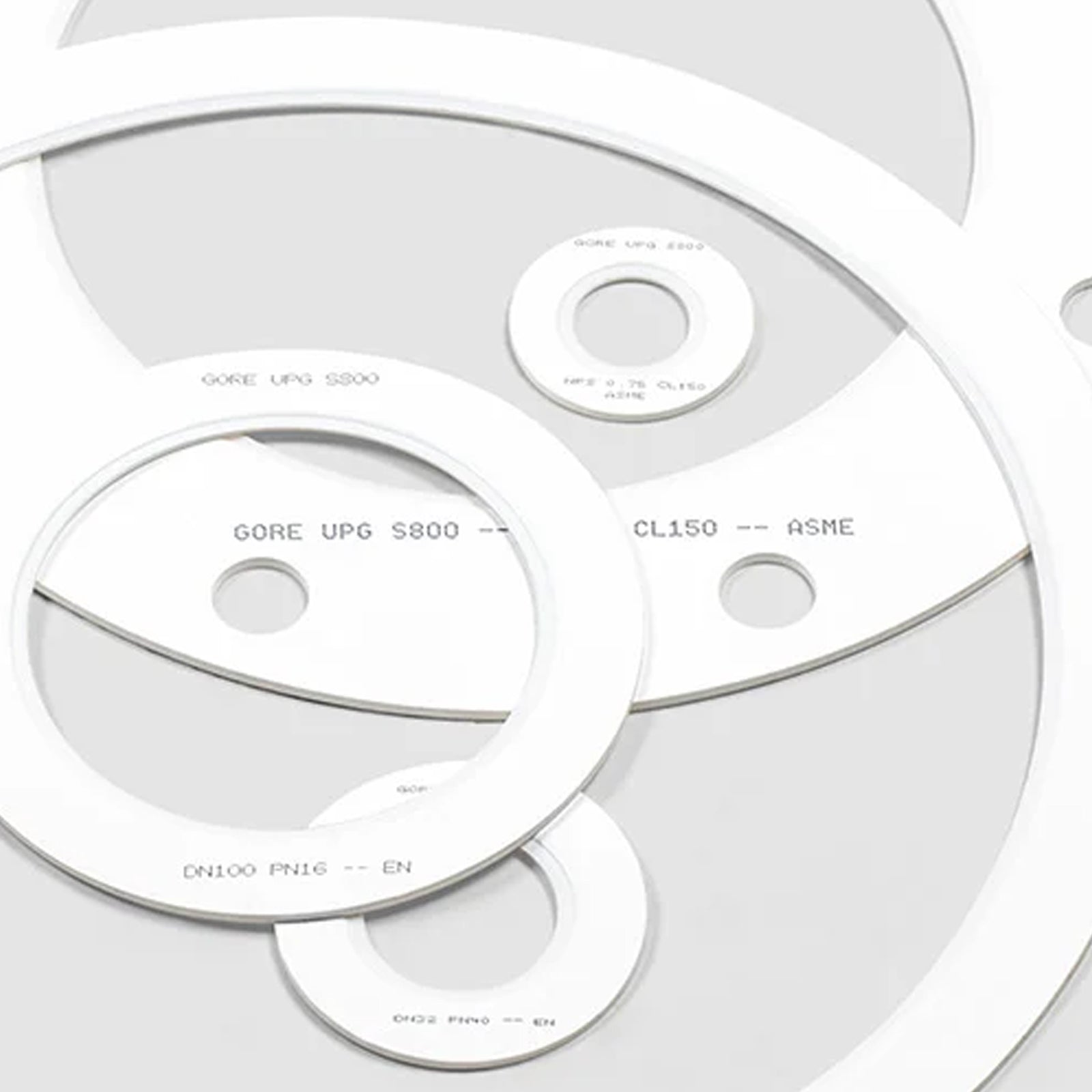

GORE® Universal Pipe Gasket (Style 800)

Achieving a durable, reliable seal across a range of pipeline applications can be a “multiple-choice” challenge: accommodating diverse flange materials, process media and operating conditions can involve a large inventory of multiple pipe flange gasket types. But it doesn't have to. Because Gore offers a universal pipe seal that meets all these challenges!

SEALING CHALLENGES FOR PIPE FLANGE GASKETS

  • Multiple piping / flange materials
  • Aggressive media
  • Deviations in flanges / sealing surfaces
  • Alternating system pressures
  • High temperatures / thermal cycling

THE GORE SOLUTION: A UNIVERSAL PIPE GASKET SEAL

GORE Universal Pipe Gasket (Style 800) provides a reliable seal for steel, glass-lined steel (GLS) and fiber-reinforced plastic (FRP) flanges. These Gore piping gaskets withstand the full spectrum of strong acid, alkali, and solvent process media, as well as the most challenging application conditions including thermal cycling and elevated temperatures. These highly conformable 100% ePTFE gaskets for flanges reliably seal irregular surfaces.

And, having a single pipeline gasket solution for multiple flange materials can reduce the chance of someone installing the wrong pipe flange gasket material — which could threaten process safety and risk production downtime.

Material: 100% expanded PTFE (polytetrafluoroethylene), with multidirectional strength

Chemical Resistance: Chemical resistance to all media pH 0-14, except molten alkali metals and elemental fluorine.

Operating Range: The maximum applicable pressure and temperature depend mainly on the equipment and installation.

  • Typical use: -60 °C to 230 °C (-76 °F to 445 °F);
    industrial full vacuum(1) to 40 bar (580 psi)
  • Maximum use: -269 °C to 315 °C (-452 °F to 600 °F);
    full vacuum to 210 bar (3000 psi)

For applications outside the typical use range, Gore recommends an application specific engineering design calculation and extra care during installation. Also, consider retorquing after a thermal cycle when the equipment has returned to an ambient temperature condition. Please contact Gore if further guidance is required.

Shelf Life: Expanded PTFE is not subject to aging and can be stored indefinitely.

Data Sheet: GORE® Universal Pipe Gasket (Style 800)
